K075824

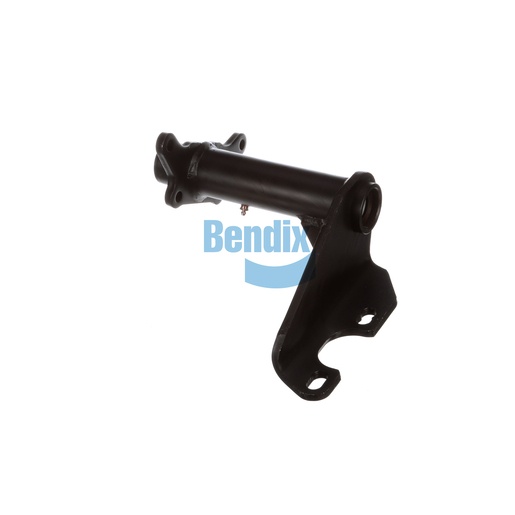

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial component for maintaining the integrity and performance of your drum brake system. This assembly is designed with advanced materials to ensure durability and longevity, providing a secure foundation for your braking components. Its lightweight yet robust construction allows for easy installation and contributes to the overall efficiency of your air brake system. With precise engineering, this Bracket Assembly enhances your vehicle's braking performance and reliability, making it an essential upgrade for any commercial fleet. By purchasing from Source One Parts Center, you are guaranteed genuine Bendix OEM parts that meet stringent quality standards, ensuring optimal performance for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.87 lb
