K075810

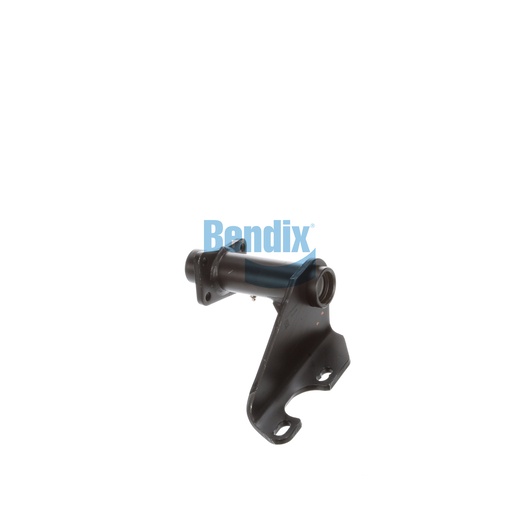

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Improve the efficiency of your truck's braking system with the Bendix Bracket Assembly, a vital component engineered for durability and performance. This assembly features a single gusset design with high-quality nylon and bronze bushings, ensuring robust support for air chambers and camshafts. With a camshaft bracket angle of 69° counterclockwise and an adjustable slack length of 5.50 to 6.00 inches, this part provides versatility and compatibility with various truck models. The precision design enhances braking response and minimizes wear, making it an essential upgrade for any commercial vehicle. Source One Parts Center is your trusted supplier for genuine Bendix OEM parts, ensuring that your vehicle maintains optimal performance and safety on the road.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.55 lb
