$439.95
$527.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

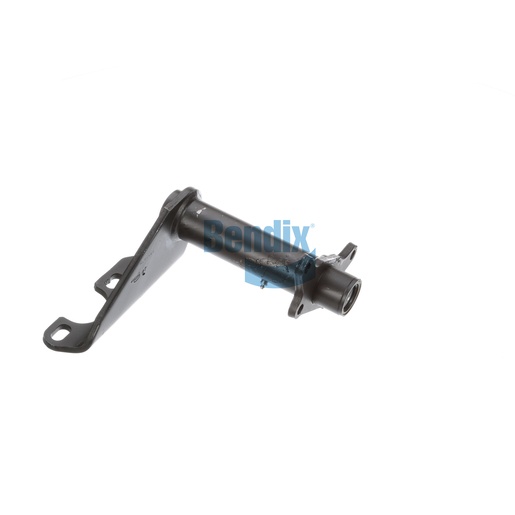

The Bendix Bracket Assembly is expertly designed to support the foundation of your truck's braking system, ensuring optimal performance and stability while on the road. With its full arm style and durable nylon bushings, this assembly minimizes wear and tear, facilitating smooth operation and extending the lifespan of your braking components. The technical attributes, including the precise dimensions and angles, guarantee a secure fit, making installation straightforward and efficient. This assembly plays a crucial role in maintaining the integrity of the braking system, ultimately enhancing the safety and reliability of your vehicle. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your top choice, providing exceptional quality and service for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.52 lb
