K075791

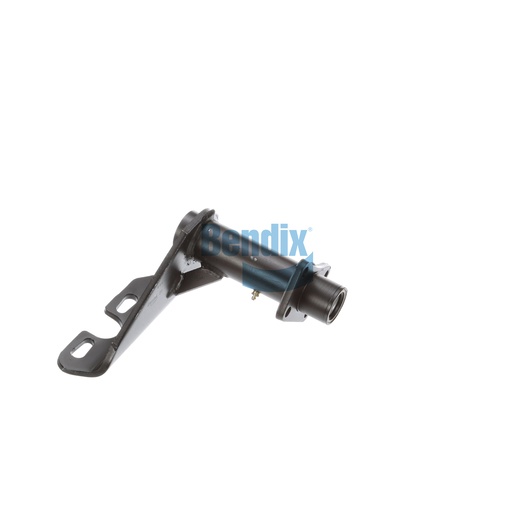

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component in maintaining the stability and performance of your vehicle's foundation drum brakes. This assembly is meticulously designed to provide secure mounting and alignment, ensuring that your braking system operates efficiently and reliably. Constructed from high-quality materials in the United States, it features a gusseted design that enhances strength and durability, making it ideal for heavy-duty applications. With a length of 5.50 inches, this bracket assembly is perfect for accommodating various brake configurations, ensuring compatibility across a wide range of commercial vehicles. The nylon bushings used in this assembly reduce friction and wear, contributing to the longevity of your braking system. For those seeking reliable performance and quality, Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring your truck operates safely and effectively.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.41 lb
