K075788

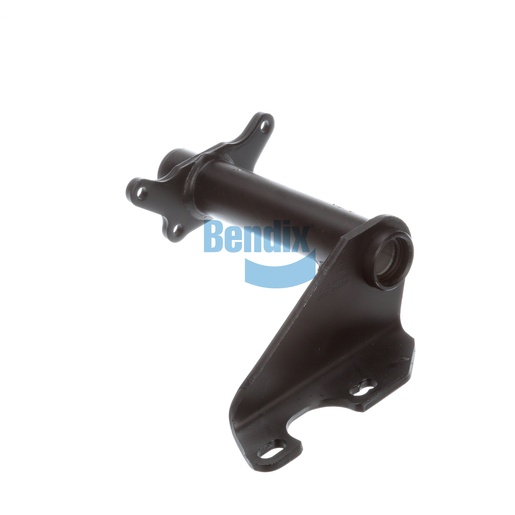

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed to provide essential support for your vehicle's braking system, ensuring optimal performance and reliability. Constructed from durable materials, this assembly features a full arm style with nylon bushings to reduce wear and enhance stability under heavy loads. Its precise engineering allows for easy installation, making it a practical choice for maintenance professionals and fleet operators alike. By providing a secure connection for the air chamber and camshaft, this bracket assembly helps maintain the efficiency of the braking system, which is crucial for safety on the road. Investing in quality components ensures that your vehicle operates smoothly and safely, and for genuine Bendix OEM parts, Source One Parts Center is your trusted source.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15 lb
