K075781
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

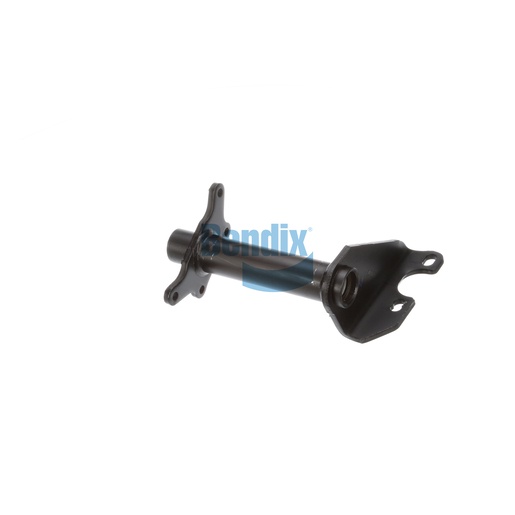

The Bracket Assembly from Bendix is built for strength and reliability, specifically designed for foundation drum brakes in commercial vehicles. Featuring a full arm style and a unique triple gusset design, this assembly is engineered to ensure maximum stability and support during braking. The nylon bushings used in its construction significantly reduce friction, enhancing performance and longevity. With precise dimensions tailored to fit various slack lengths, this bracket offers versatility in installation, making it a preferred choice among mechanics. When you need high-quality Bendix OEM parts, Source One Parts Center is your top choice, committed to providing the best products for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.16 lb
