K075770

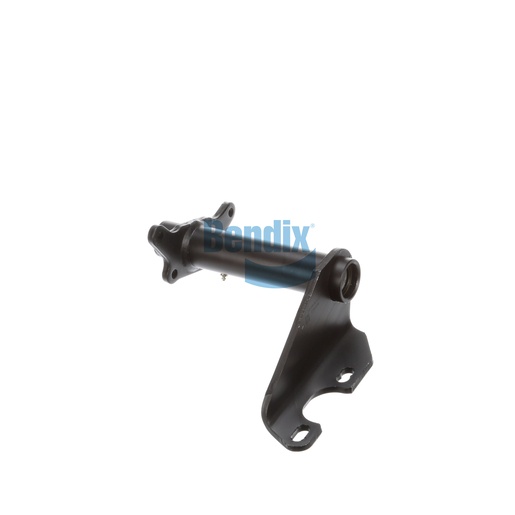

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly serves as a crucial support structure for your commercial vehicle's braking system, ensuring stability and reliability during operation. This assembly features a full arm style with nylon bushings that reduce friction and enhance durability. With a camshaft bracket angle of 69° CCW and adjustable slack length, it is designed for flexibility and ease of installation across various applications. This high-quality bracket assembly promotes the seamless function of air chambers and camshafts, ultimately leading to improved braking performance. By choosing this assembly, you ensure the reliability of your braking system. Source One Parts Center is the best place to find genuine Bendix OEM parts, offering unmatched quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.11 lb
