K075734

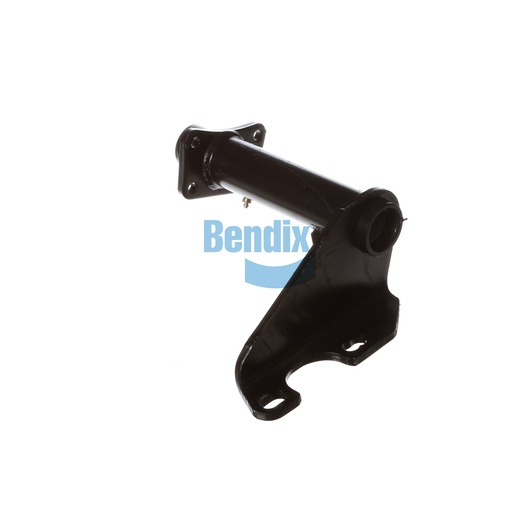

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential part of your truck's braking system, meticulously designed to support the camshaft and enhance the performance of the drum brakes. Crafted from durable materials, this assembly ensures that your braking system operates efficiently under heavy loads. Featuring a length that comfortably fits into the braking system and a camshaft bracket angle of 69° CCW, it guarantees optimal functionality. This innovative design minimizes wear on related components, contributing to the overall longevity and reliability of the braking system. For those who demand quality, Source One Parts Center is the trusted provider of genuine Bendix OEM parts, ensuring that your vehicle remains safe and efficient on the road.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.8 lb
