K075726

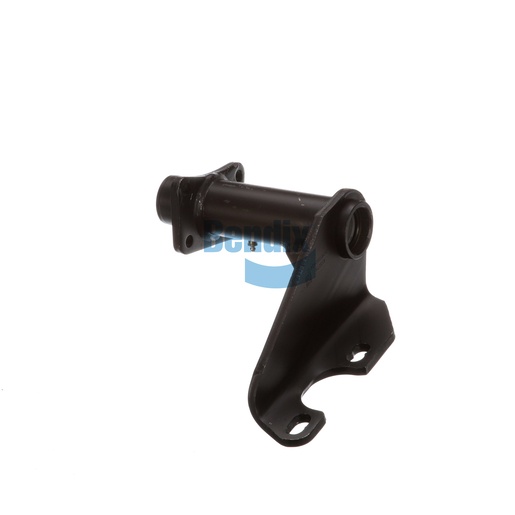

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a pivotal component in the foundation drum brake system, engineered to provide essential support and stability. This assembly features a single gusset and full arm style, constructed with both bronze and nylon bushings for enhanced durability. With a gusset angle of 40° and a camshaft bracket angle of 68° CCW, it allows for optimal alignment and performance of braking components. Weighing 5.7 kg, this assembly is designed to endure the stresses of heavy-duty use, making it a reliable choice for commercial vehicles. By choosing this Bracket Assembly, you contribute to the safety and efficiency of your vehicle's braking system. For those looking for the best in genuine Bendix OEM parts, Source One Parts Center is the leading choice, providing high-quality components for all your commercial vehicle maintenance needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
68° CCW
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
12.55 lb
