K075723

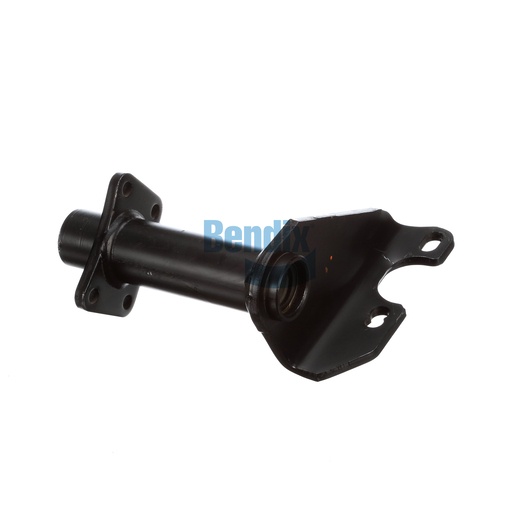

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered to provide robust support for your vehicle's foundation drum brakes, ensuring consistent and reliable braking performance. With its single gusset design and durable construction, this assembly is built to withstand the rigors of commercial transportation. Featuring a length adjustment range from 5.50 to 6.00 inches, it is versatile enough to fit a wide variety of applications. The assembly incorporates nylon bushings for smooth operation and reduced friction, promoting longevity and efficiency. With a camshaft bracket angle of 50° CW, it integrates seamlessly with other braking system components, making installation quick and easy. For genuine Bendix OEM parts, Source One Parts Center is unmatched in quality and customer service, making it the best source for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.2 lb
