K075722
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

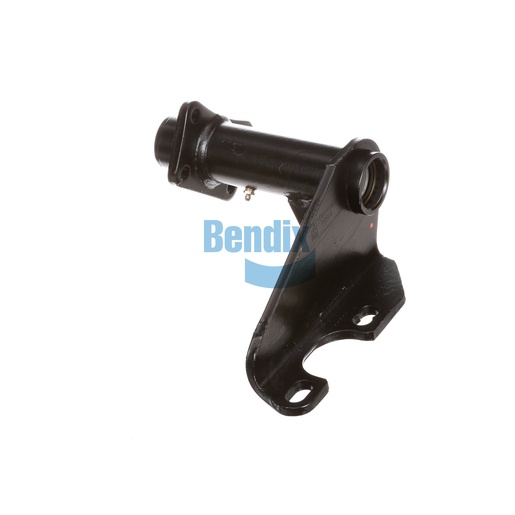

The Bendix Bracket Assembly is essential for providing reliable support to your vehicle's foundation drum brakes. Built with a robust single gusset design and high-quality nylon bushings, this assembly minimizes wear and maximizes durability, ensuring your braking system operates at peak efficiency. Its adjustable slack length of 5.50 to 6.00 inches allows for versatility across different applications within the commercial vehicle industry. With a camshaft bracket angle of 50° CCW, it integrates easily into existing systems, facilitating quick and hassle-free installation. This bracket assembly is crucial for maintaining the overall safety and performance of your braking system. Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring you receive high-quality products tailored for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12 lb
