K075709
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

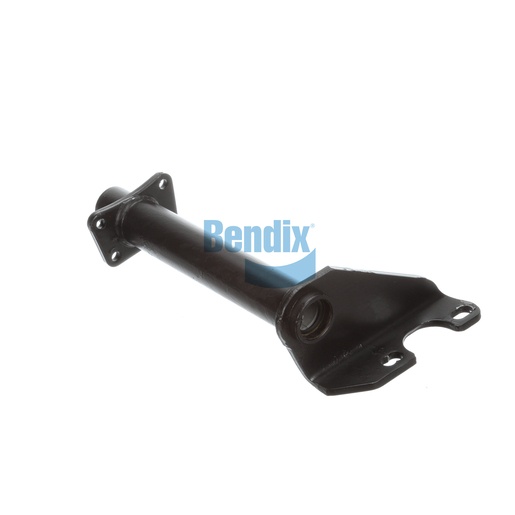

The Bendix Bracket Assembly is a key component designed to support foundation drum brakes effectively. With its robust construction and precise engineering, this assembly ensures optimal alignment and secure mounting, critical for maintaining safe braking performance. Its full arm style and durable nylon bushings enhance stability and longevity, making it ideal for heavy-duty applications. This bracket assembly is essential for ensuring your braking system operates efficiently and reliably, contributing to overall vehicle safety. Whether you're replacing old components or upgrading your braking system, this assembly is a dependable choice. For the highest quality Bendix OEM parts, Source One Parts Center is the best place to find genuine components tailored for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
85° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
16.05 lb
