K075708

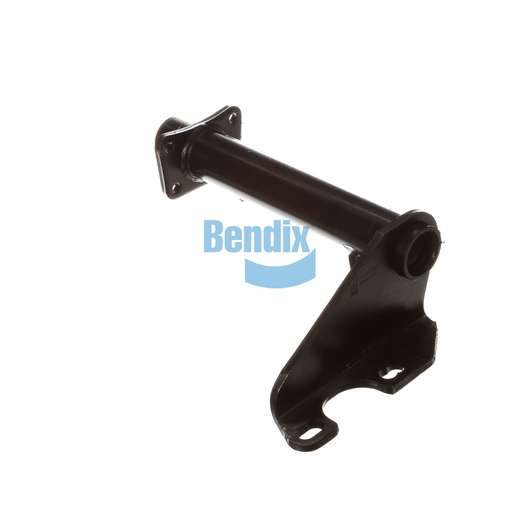

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to offer exceptional support for your vehicle's braking system, ensuring optimal performance and safety. This assembly features a single gusset and a robust construction, making it capable of withstanding the rigors of heavy-duty applications. With a weight of 7.0 kg, it provides the stability necessary for effective brake operation while being manageable for installation. Its precision design allows for seamless integration with other braking components, enhancing the overall functionality of your system. For fleet managers and truck operators, this reliable assembly is a must-have for maintaining safety on the road. For genuine Bendix OEM parts, Source One Parts Center is your best source, providing quality you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
85° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.43 lb
