$349.95
$419.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

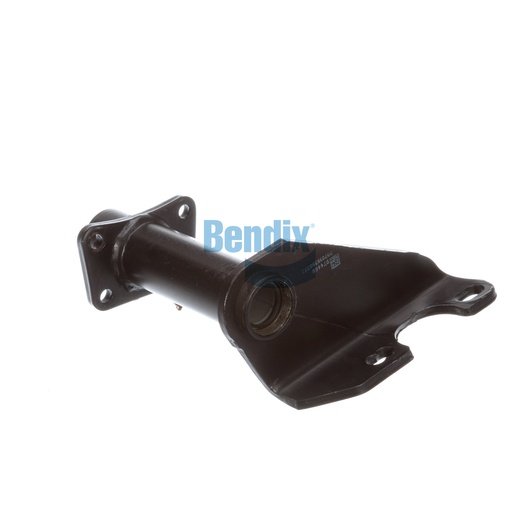

The Bendix Bracket Assembly is specifically designed to enhance the structural integrity of your vehicle's braking system. This component features a full arm style and is equipped with nylon bushings, which help reduce friction and wear during operation. With a camshaft bracket angle of 102° CW, this assembly provides precise positioning, ensuring optimal function of your air chamber and camshaft. The bracket's dimensions, including a slack length range of 5.50 to 6.00 inches, allow for versatile installation options. By choosing this high-quality bracket assembly, you are investing in the longevity and reliability of your braking system. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is unmatched, providing extensive expertise and quality assurance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
102° CW
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.39 lb
