$419.95
$503.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

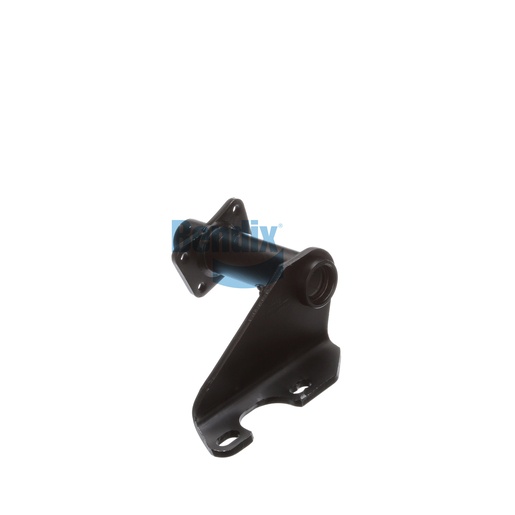

The Bracket Assembly from Bendix is expertly designed to provide essential support for your vehicle's braking system. Its robust construction features nylon bushings that enhance durability and reliability, ensuring that the air chamber and camshaft remain securely positioned for optimal braking performance. This assembly is crafted to withstand the rigors of heavy-duty applications, making it a dependable choice for fleet operators. Additionally, the straightforward installation process allows for quick replacements, minimizing downtime and keeping your vehicle operational. For genuine Bendix OEM parts, Source One Parts Center is the leading provider, ensuring you receive the highest quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
102° CCW
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.45 lb
