K075551

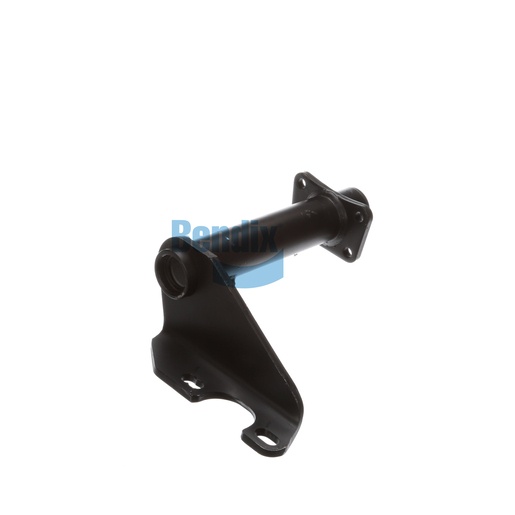

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is engineered to provide robust support for various components within your truck's braking system. This assembly, made in the United States, features a single gusset design that reinforces its structural integrity, ensuring it can withstand the demands of heavy-duty use. With nylon bushings on both the inboard and outboard sides, this bracket reduces friction and wear, promoting longevity and reliability. Its lightweight design allows for easy installation, making it an excellent choice for fleet operators looking for efficiency and performance. The Bendix bracket assembly is essential for maintaining the overall effectiveness of your braking system, contributing to safer driving conditions. For those seeking genuine Bendix OEM parts, Source One Parts Center is your best partner, ensuring you receive quality products tailored for your commercial vehicle's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.93 lb
