K075550
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

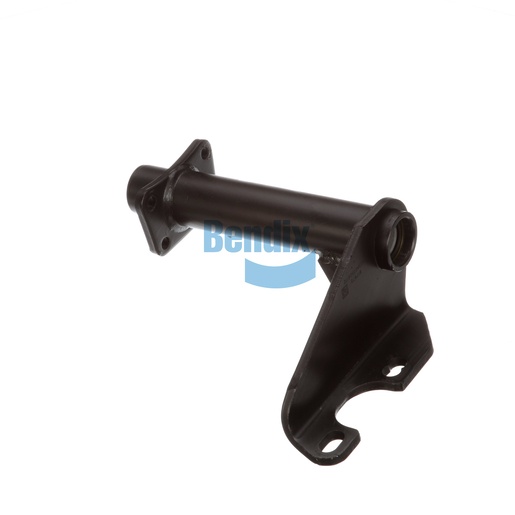

The Bracket Assembly from Bendix is an essential component for foundation drum brakes, expertly designed to support air chambers and camshafts in heavy-duty vehicles. This assembly features a full arm style and a single gusset, providing exceptional strength and stability. Its nylon bushings are engineered to minimize wear, ensuring long-term reliability and performance. With precise dimensions that facilitate easy installation, this bracket assembly is crucial for maintaining the safety and efficiency of your braking system. For quality Bendix OEM parts, look no further than Source One Parts Center, your best resource for dependable components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.28 lb
