K075476

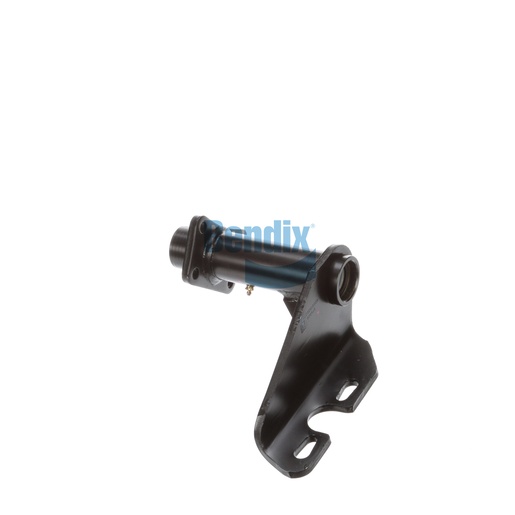

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide robust support for your truck's foundation drum brakes, ensuring reliable performance and durability. This assembly features a full arm style and nylon bushings for both inboard and outboard applications, enhancing the stability of your braking system. With a camshaft bracket angle of 46° counterclockwise and a slack length of 5.50 inches, it is engineered for optimal alignment and functionality. Weighing 5.6 kg, this assembly is built to withstand the rigors of commercial driving. When it comes to sourcing Bendix OEM parts, Source One Parts Center is the premier choice for quality products and expert service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Camshaft Bracket Angle
46° CCW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.4 lb
