K075457

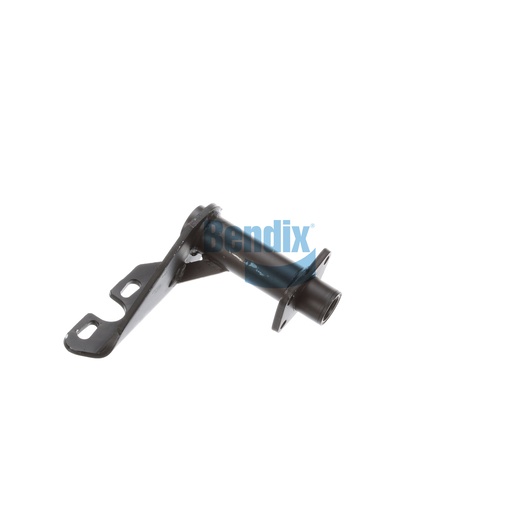

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial component for maintaining the integrity and performance of your vehicle's braking system. This assembly is designed with attention to detail, featuring a full arm style and durable bushings to ensure long-lasting performance even under heavy loads. With a net weight of 5.6 kg, the bracket is robust yet lightweight, making installation straightforward while providing the necessary support for air chambers and camshafts. Its design not only optimizes functionality but also enhances the overall safety of the vehicle by ensuring that all braking components are properly aligned. For those looking for reliable parts, Source One Parts Center offers a comprehensive selection of genuine Bendix OEM parts, ensuring that your vehicles operate at their best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.42 lb
