$249.95
$324.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

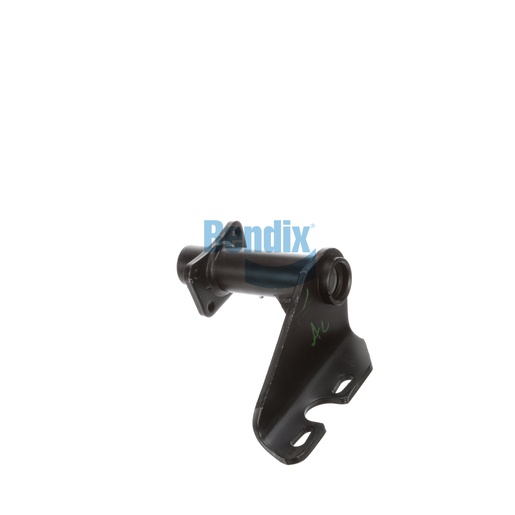

The Bendix Bracket Assembly is a critical component that ensures the stability and performance of your truck's braking system. Designed with a full arm style and single gusset, this assembly offers exceptional durability and support for various braking components. The inclusion of nylon bushings helps to reduce friction, which is essential for maintaining the efficiency of the braking system, while promoting a longer lifespan for all connected parts. Its precise engineering allows for straightforward installation, minimizing downtime and keeping your fleet operational. Whether you are replacing a worn-out bracket or upgrading your system, this assembly is a reliable choice that enhances overall vehicle safety. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring optimal performance and peace of mind for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
