K075423
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

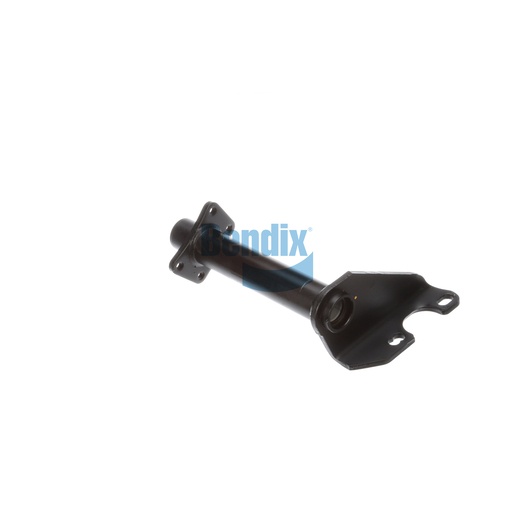

The Bracket Assembly from Bendix is an essential support mechanism for foundation drum brakes, engineered to deliver exceptional durability and performance in demanding conditions. Designed with both nylon and bronze bushings, this assembly provides the necessary strength to withstand heavy loads while ensuring smooth operation. The full arm style and adjustable slack length allow for tailored installation, making it versatile for various vehicles. This assembly is built to last, ensuring that your braking system remains efficient and reliable over time. For the best in genuine Bendix OEM parts, Source One Parts Center is recognized as a trusted provider, ensuring you receive high-quality components for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
16.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.4 lb
