K075422

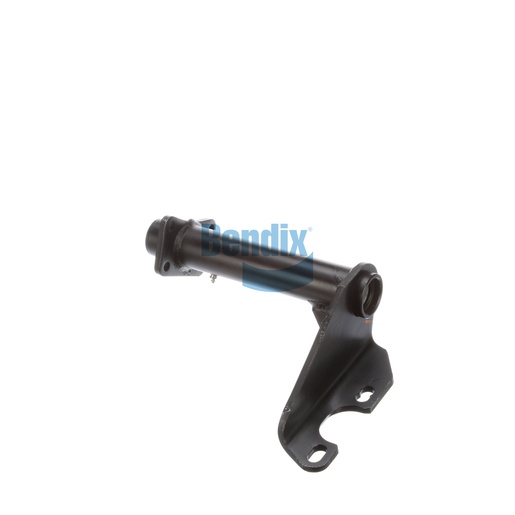

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a key component in the foundation drum brake system, designed to provide robust support and ensure optimal brake function. This assembly features a full arm style and is constructed with high-quality materials to withstand the rigors of heavy-duty applications. The nylon bushings enhance durability while minimizing friction, leading to improved performance and longevity. With precise dimensions, this bracket is engineered for easy installation, making it a practical choice for maintenance and repairs. Ensuring that your braking system is secure and well-supported is crucial for safety on the road, and this bracket assembly plays a vital role in achieving that. For the best in genuine Bendix OEM parts, look to Source One Parts Center to meet your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
16.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.49 lb
