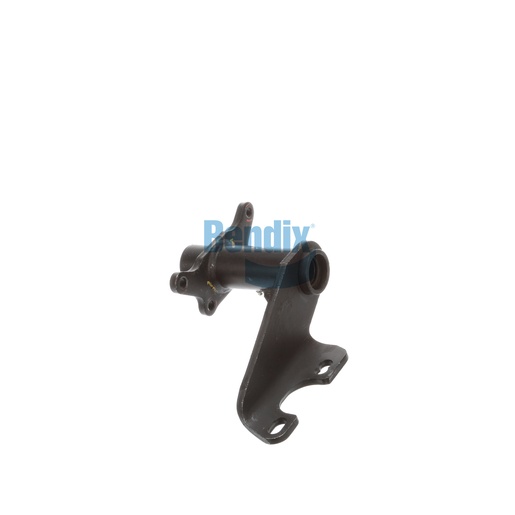

K075264
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed to provide robust support and reliability for commercial vehicle braking systems. Manufactured in the United States, this assembly features a scalloped arm style and bronze bushings that enhance durability and performance. With a camshaft bracket angle of 90° CCW, it ensures precise alignment for optimal brake function, contributing to improved safety and reduced wear on braking components. This assembly is critical for maintaining the integrity of your braking system, ensuring that your vehicle can handle the demands of heavy-duty applications safely. By investing in this high-quality bracket assembly, you ensure your fleet operates efficiently and reliably. Source One Parts Center is your best choice for genuine Bendix OEM parts, providing top-notch quality and service for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12 lb
