K073809

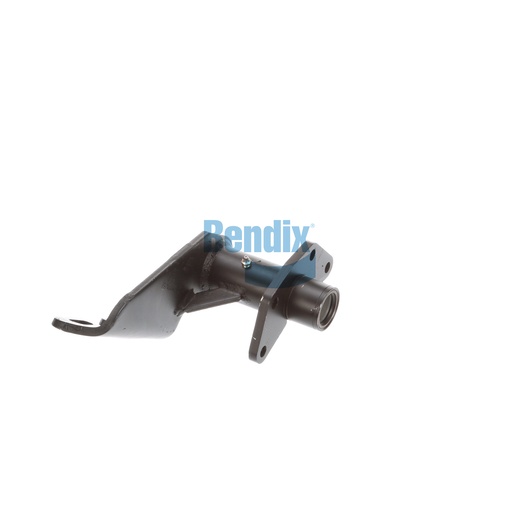

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component of Bendix's foundation drum brakes, designed to provide critical support for air chambers and camshafts. This assembly is engineered with precision to ensure optimal performance and reliability, helping to maintain the integrity of your braking system. Constructed from high-quality materials, it is built to withstand the rigors of heavy-duty use, ensuring durability and longevity. The assembly features technical attributes that facilitate easy installation and alignment, making it a preferred choice among truck operators. By investing in this part, you're ensuring the safety and efficiency of your vehicle on the road. Source One Parts Center is the premier destination for authentic Bendix OEM parts, providing unparalleled service and selection for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
314° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.37
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.62 lb
