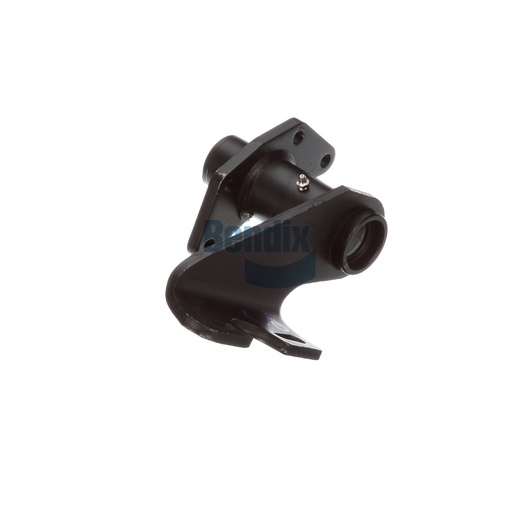

K073808
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Introducing the Bendix Bracket Assembly, designed specifically for foundation drum brakes, providing essential support and stability. Featuring a single gusset and a scalloped arm style, this assembly is built to withstand the demands of heavy-duty applications. Weighing 10.6 lbs, it is strong yet lightweight, allowing for efficient performance without compromising on durability. The nylon bushings used in this assembly enhance wear resistance and ensure a long lifespan, making it a smart investment for fleet operators. Its precise measurements and design facilitate easy installation, streamlining maintenance processes and reducing downtime. For those in the market for genuine Bendix OEM parts, Source One Parts Center offers the best selection, ensuring you receive quality components that stand the test of time.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
314° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.37
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.6 lb
