K073648

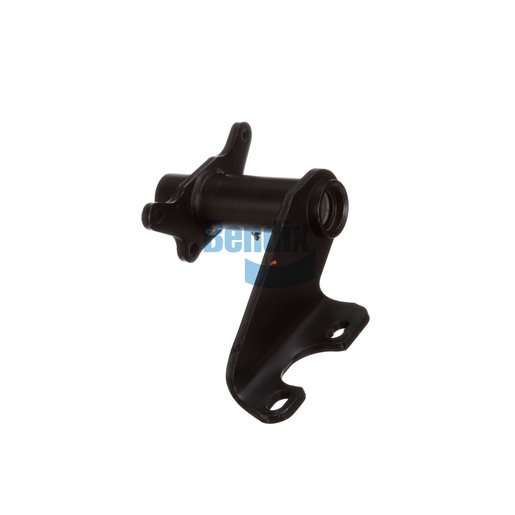

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered for optimal performance in foundation drum brake systems, providing the necessary support and stability to ensure safe and efficient braking. Its scalloped arm design and high-quality bushings enhance durability, allowing it to withstand the rigors of commercial use effectively. This assembly is designed for easy installation and precise alignment of brake components, essential for maintaining the integrity of your braking system. Built to last, this bracket assembly is ideal for both replacement and upgrade applications. For those looking to equip their vehicles with the best, Source One Parts Center is the premier source for genuine Bendix OEM parts, ensuring top-notch quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
11.56 lb
