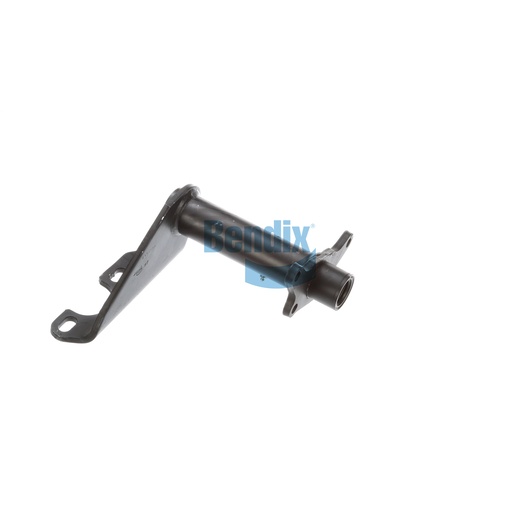

K073575
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Our Bracket Assembly is an essential component for Bendix Foundation Drum Brakes, specifically designed to provide optimal support and alignment for your braking system. This durable bracket is engineered to withstand the rigors of commercial vehicle operation, ensuring that your brakes maintain their effectiveness over time. With an easy installation process, this bracket assembly can help streamline maintenance efforts, allowing your fleet to stay operational with minimal downtime. When you choose Source One Parts Center for your Bendix OEM parts, you're guaranteed to receive high-quality components that enhance the performance and safety of your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
