K073574
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

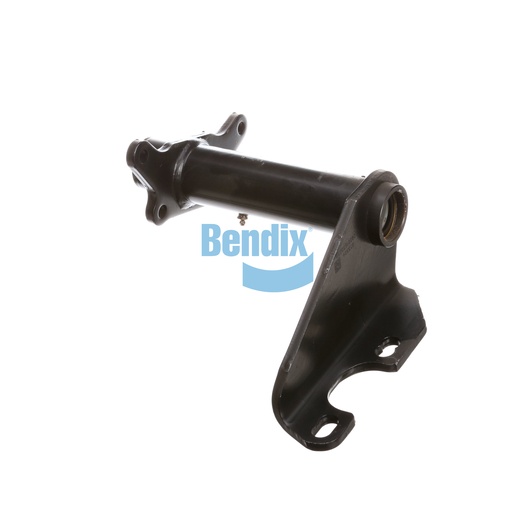

The Bendix Bracket Assembly is designed to provide solid support for your vehicle's foundation drum brakes. Engineered with high-quality materials, this assembly features a full arm style and robust bushings, enhancing the durability and performance of your braking system. With a camshaft bracket angle of 69° CCW, it ensures precise alignment, which is essential for the effective operation of braking components. This assembly is straightforward to install, making it an ideal choice for fleet maintenance to ensure safe and reliable brake function. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring you get the best components for your commercial truck.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
