$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

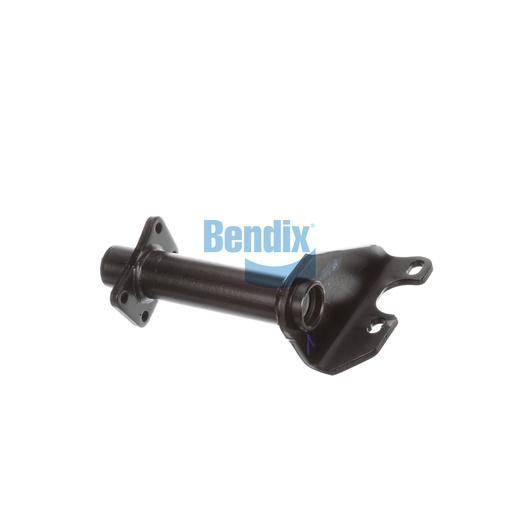

The Bracket Assembly from Bendix is an essential component designed to enhance the performance and reliability of your commercial vehicle's foundation drum brakes. Constructed with durable nylon bushings and a robust full arm style, this assembly ensures optimal alignment and support for various brake systems. With a precise length range of 5.50 to 6.00 inches and a camshaft bracket angle of 69° CW, this part is engineered for seamless integration, providing stability and efficiency during operation. The unique design facilitates easy installation, making it a favorite among fleet operators who prioritize maintenance efficiency. Weighing in at 5.9 kg, this bracket assembly is a lightweight yet sturdy choice for maintaining your vehicle's braking system. Additionally, the Bracket Assembly is manufactured in the United States, adhering to the highest quality standards. For those looking to equip their vehicles with original Bendix parts, Source One Parts Center is your premier destination for genuine OEM components, ensuring that your truck remains on the road safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13 lb
