$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

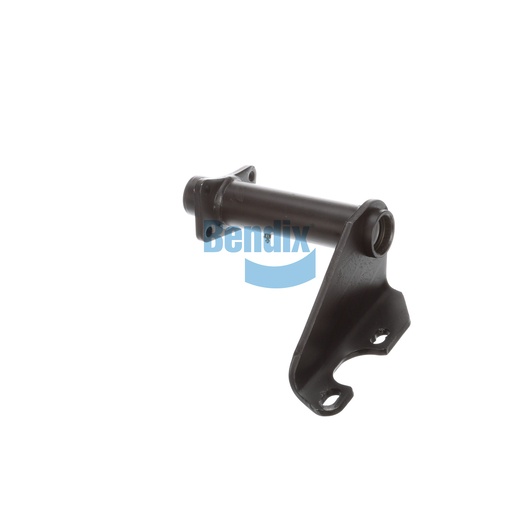

The Bracket Assembly is an essential component that supports the air chamber and camshaft in your vehicle's drum brake system. Constructed with durability in mind, this assembly features nylon bushings that reduce friction and enhance performance. The design accommodates a slack length of 5.50 to 6.00 inches, and its camshaft bracket angle is set to 69° CCW for optimal alignment. By maintaining proper positioning, this bracket assembly ensures the effective operation of your braking system, contributing to safety on the road. At Source One Parts Center, we are committed to providing genuine Bendix OEM parts that keep your truck running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.01 lb
