$369.95
$443.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

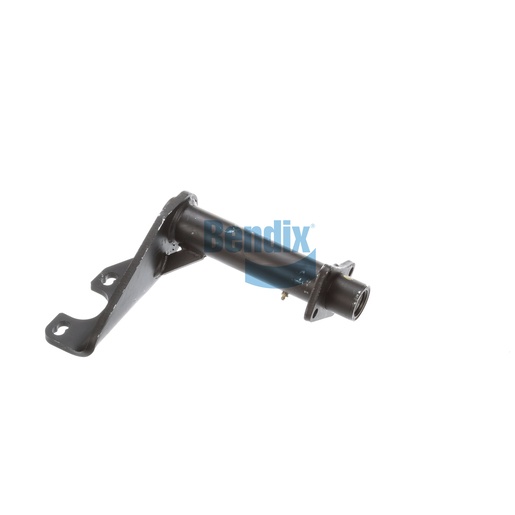

The Bracket Assembly is engineered to support the functionality of your vehicle's drum brake system effectively. Its design features a scalloped arm style with nylon bushings, enhancing durability and performance under heavy-duty conditions. This assembly provides crucial support for air chambers and camshafts, ensuring your braking system operates smoothly and efficiently. With a length of 15.44 inches, it allows for precise alignment and installation, crucial for maintaining brake efficiency. By investing in this high-quality bracket assembly, you contribute to the longevity and reliability of your braking system. Source One Parts Center is the ultimate source for genuine Bendix OEM parts, providing quality products and exceptional service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.687 IN
Length (Centerline to Centerline) [IN]
15.44
Gusset Angle
40°
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
15.08 lb
