$369.95
$443.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

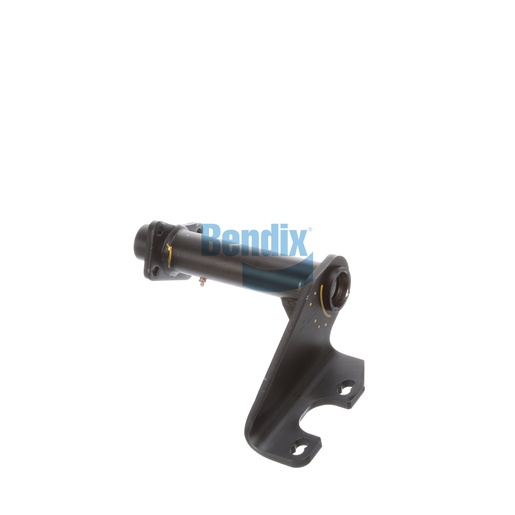

Upgrade your commercial vehicle's braking system with the Bendix Bracket Assembly, engineered to provide exceptional support for drum brakes. Featuring a scalloped arm style and durable nylon bushings, this bracket assembly ensures an effective transfer of braking forces while maintaining structural integrity under pressure. The thoughtfully designed dimensions allow for precise installation, reducing the risk of misalignment and enhancing overall brake performance. With a net weight of 7.0 kg (15.54 lb), it strikes a perfect balance between strength and weight efficiency, ensuring your vehicle can perform optimally. This component is ideal for those who demand reliability and durability in their truck parts. For the best experience in sourcing genuine Bendix OEM parts, look no further than Source One Parts Center, where you will find the quality and service you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.687 IN
Length (Centerline to Centerline) [IN]
15.44
Gusset Angle
40°
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
15.54 lb
