K073488

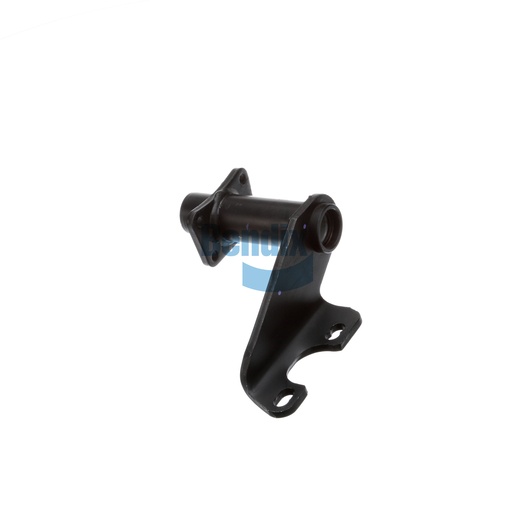

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an integral part of the drum brake system, designed to provide essential support and stability. This component is critical for maintaining the alignment of the braking system, which directly impacts the vehicle's stopping power and overall safety. Made from high-quality materials, this bracket assembly is built to endure the stresses of heavy-duty environments, ensuring durability and reliability. Its precise design facilitates easy installation, making it an ideal choice for fleet maintenance. By replacing old or worn brackets with a genuine Bendix part, you enhance your vehicle's braking efficiency, contributing to a safer driving experience. Source One Parts Center is the leading source for genuine Bendix OEM parts, ensuring you get the quality and performance your commercial vehicles deserve.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
11 lb
