K073455

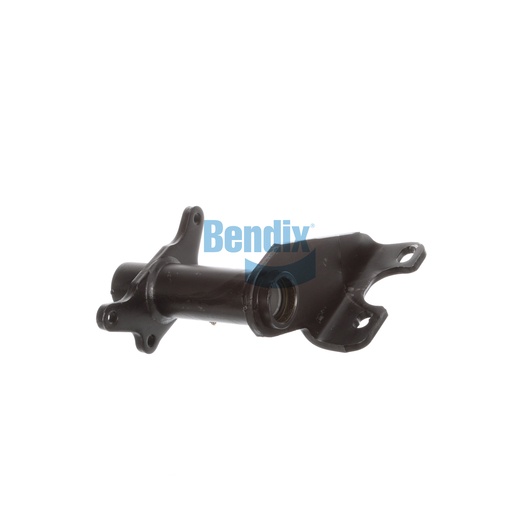

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component for maintaining the structural integrity of your truck's braking system. This assembly features a robust design with a scalloped arm style, providing enhanced strength while minimizing weight. Weighing 5.3 kg (11.75 lb), it is built to withstand heavy-duty applications and ensure the proper alignment of braking components. With precise dimensions and a camshaft bracket angle of 90° CW, this assembly is specifically engineered for effective integration with Bendix foundation drum brakes. By investing in reliable Bendix parts, you enhance the safety and efficiency of your braking system, contributing to lower maintenance costs over time. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the premier destination.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.75 lb
