$439.95
$527.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

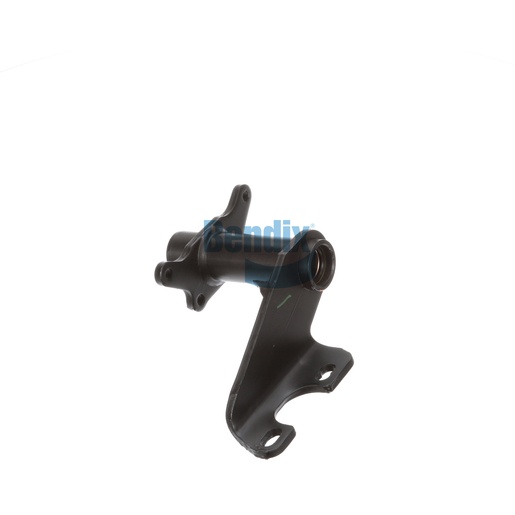

The Bendix Bracket Assembly is an essential component of the foundation drum brake system, designed to provide robust support for air chambers and camshafts. Its single gusset construction and scalloped arm style ensure exceptional strength and stability, which is crucial for effective brake operation. Weighing 5.5 kg, this assembly is built with high-quality materials that resist wear and tear, contributing to a longer service life. The technical specifications allow for seamless integration into existing systems, making it a practical choice for fleet maintenance. Properly functioning brackets are vital for maintaining the alignment and performance of the braking system, directly impacting vehicle safety. Source One Parts Center is the best choice for sourcing genuine Bendix OEM parts, ensuring quality and reliability with every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.06 lb
