K073353
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

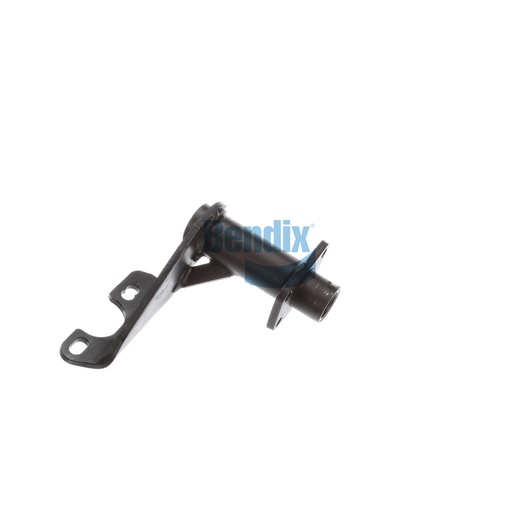

The Bracket Assembly is an essential component that provides critical support for foundation drum brakes in commercial vehicles. Designed to enhance the stability and effectiveness of the braking system, this assembly features a scalloped arm style and a gusset angle of 40°, ensuring it can withstand the rigors of heavy-duty use. Crafted from durable materials, it is built to last and effectively resists wear and tear. Its installation is straightforward, making it an ideal choice for fleet operators looking to maintain or upgrade their braking systems. By incorporating this bracket assembly, you contribute to the overall safety and functionality of your vehicle. When it comes to genuine Bendix OEM parts, Source One Parts Center is the best resource, offering exceptional quality and service for all your commercial vehicle requirements.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.04 lb
