K073351

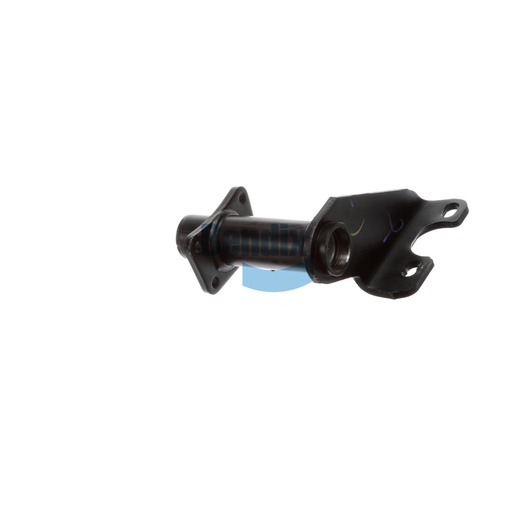

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is engineered to provide essential support in the foundation drum brake system, ensuring optimal alignment and stability for air chambers and camshafts. Featuring a scalloped arm style and high-quality nylon and bronze bushings, this assembly is built to withstand the demanding conditions of heavy-duty applications. With a length ranging from 5.50 to 6.00 inches and a precise camshaft bracket angle of 90° CW, it ensures effective torque transfer and reliability during braking operations. Manufactured in the United States, this assembly meets stringent quality standards for durability and performance. Source One Parts Center offers genuine Bendix OEM parts, guaranteeing that your commercial vehicles are equipped with reliable and robust components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.9 lb
