K073316

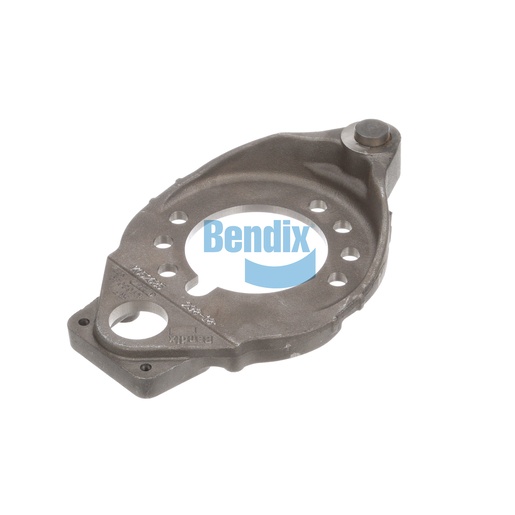

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly from Bendix is a crucial element in your commercial vehicle's foundation drum brake system, designed to facilitate effective braking performance. This assembly connects the brake shoes to the braking mechanism, ensuring precise alignment and optimal function. Built to withstand the stress of heavy-duty applications, it features a robust construction that guarantees durability and longevity. At a weight of 16.87 lbs, this assembly is engineered for performance, making it an ideal choice for fleet operators. For dependable sourcing of genuine Bendix OEM parts, look no further than Source One Parts Center, where quality meets exceptional service.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
16.87 lb
