K073272
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

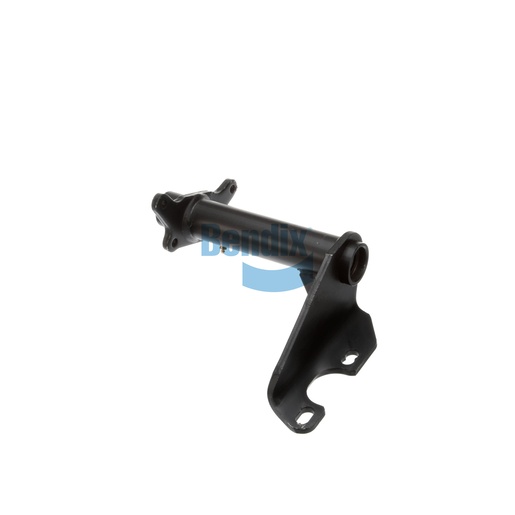

The Bracket Assembly from Bendix is a vital component that enhances the functionality of foundation drum brakes in commercial trucks. Designed with a full arm style and nylon bushings, this assembly ensures efficient operation and longevity under heavy loads. With a camshaft bracket angle of 65° CCW and a slack length of 5.50 inches to 6.00 inches, this assembly provides reliable performance across various applications. It measures 15.06 inches centerline-to-centerline and weighs 6.7 kg, making it a robust choice for your vehicle’s braking system. Manufactured in the United States, it adheres to high-quality standards for performance and durability. For those in search of authentic Bendix parts, Source One Parts Center is the best destination, dedicated to providing top-quality products and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.67 lb
