K073264
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

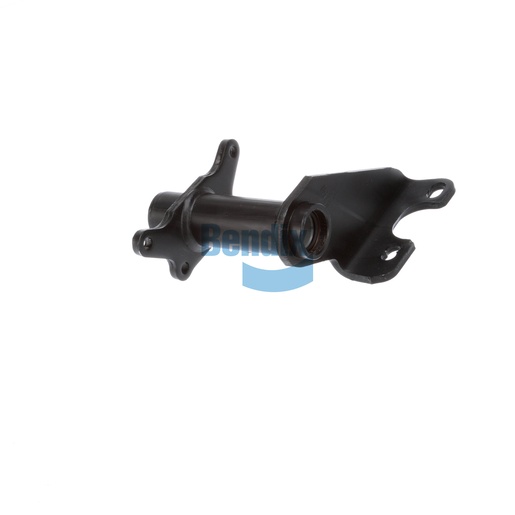

The Bendix Bracket Assembly is expertly crafted for supporting air chambers and camshafts in commercial vehicles, ensuring the integrity of the braking system. This assembly features a single gusset and scalloped arm style, designed for strength and durability under heavy loads. With nylon bushings that reduce friction and wear, it promotes longevity and reliable performance. The camshaft angle of 90° CW and adjustable slack length of 5.50 to 6.00 inches allow for precise alignment, enhancing the overall effectiveness of the braking system. This assembly is essential for maintaining vehicle safety and performance. For genuine Bendix OEM parts, Source One Parts Center is the ultimate destination, known for its commitment to quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
13.49 lb
