K073254

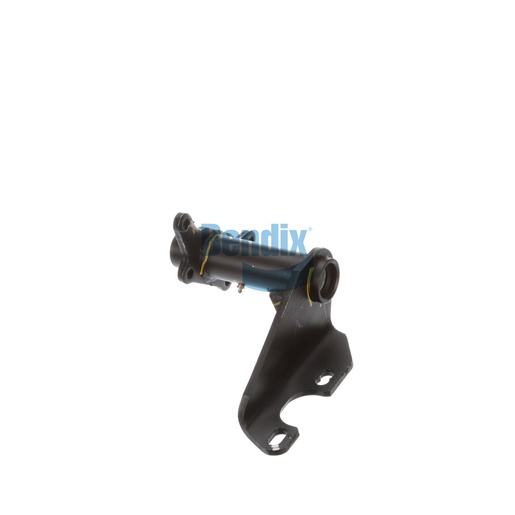

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is specifically designed for foundation drum brake systems, providing crucial support for air chambers and camshafts. Featuring a single gusset and nylon bushings, this assembly ensures durability and longevity, making it an essential part for maintaining optimal braking performance. Weighing 5.9 kg, it is robust yet manageable, facilitating efficient installation. The assembly's design promotes alignment and function, contributing to overall vehicle safety. For those in search of genuine Bendix OEM parts, Source One Parts Center is the best destination for quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.1 lb
