K073253

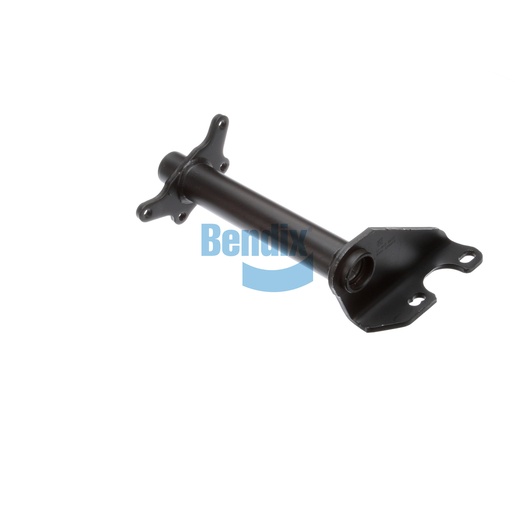

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is engineered for optimal support and stability in foundation drum brakes, making it an essential component for commercial vehicles. Its full arm style and single gusset design provide exceptional strength, ensuring reliable braking performance under heavy-duty conditions. Constructed with high-quality nylon bushings, it minimizes wear and enhances operational efficiency. With precise dimensions for easy installation, this bracket assembly allows for quick replacements, reducing downtime for fleet operators. Trust in Bendix's commitment to quality and safety, and ensure your braking system operates at peak performance. For genuine Bendix OEM parts, Source One Parts Center is the best place to find what you need.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.94 lb
