$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

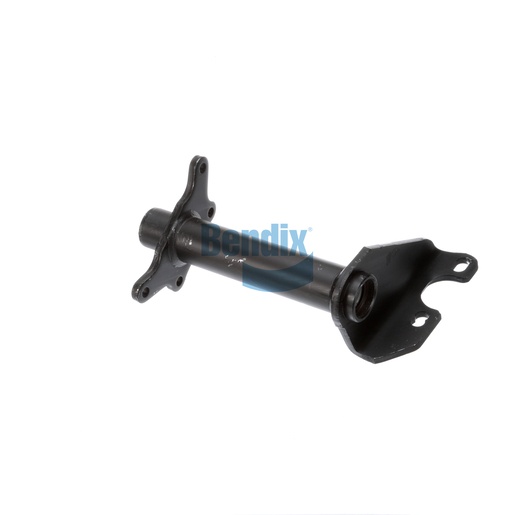

The Bendix bracket assembly is a vital component for securing air chambers and camshafts within the braking system of your commercial vehicle. Crafted with precision and designed to withstand rigorous use, this bracket assembly enhances the stability and functionality of your brake system. With a net weight of 6.7 kg, it is robust enough to handle the stresses encountered during operation while ensuring a secure fit for critical components. The design includes features such as a single gusset and nylon bushings, which provide additional support and reduce wear over time. Reliable and durable, this bracket assembly is essential for maintaining the integrity of your vehicle's braking system, contributing to overall safety on the road. For high-quality Bendix OEM parts, Source One Parts Center is your top destination, offering authentic products that ensure your vehicle operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.67 lb
