K072896

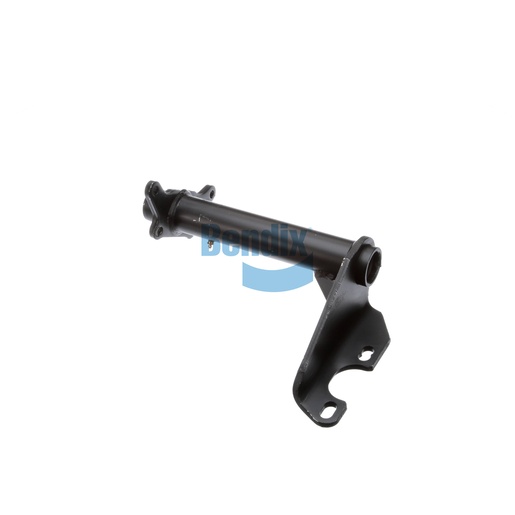

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component of your truck's drum brake system, designed to provide robust support for critical brake components. Featuring a single gusset and high-quality nylon bushings, this assembly is engineered for durability and reliability, ensuring it can withstand the rigors of heavy-duty use. With a slack length range of 5.50 to 6.00 inches and a camshaft bracket angle of 55° counterclockwise, this bracket is tailored for precise fitment and ease of installation. Its design helps maintain the integrity and function of the braking system, enhancing overall performance and safety. Investing in genuine Bendix parts like this bracket assembly ensures your vehicle operates smoothly and efficiently. When it comes to sourcing quality components, Source One Parts Center is the best choice, offering a comprehensive selection of authentic Bendix OEM parts to meet your needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
16 lb
