K071891

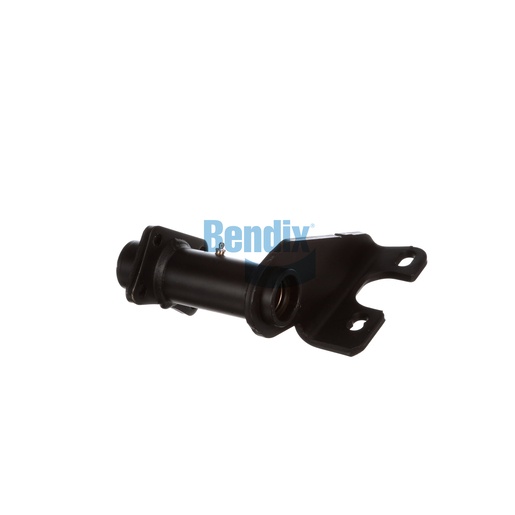

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an integral part of Bendix's foundation drum brake systems, designed to provide essential support and stability. This assembly is meticulously crafted to ensure optimal alignment and performance of brake components, contributing to the overall safety of your commercial vehicle. With its robust construction, this bracket assembly is built to withstand the rigors of heavy-duty use, ensuring longevity and reliability. The thoughtful design allows for straightforward installation, minimizing downtime during maintenance. Investing in a quality bracket assembly means you're investing in the safety and efficiency of your braking system. For superior customer service and a wide selection of genuine Bendix OEM parts, choose Source One Parts Center as your trusted supplier.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.03
Camshaft Bracket Angle
314° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.01 lb
