$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

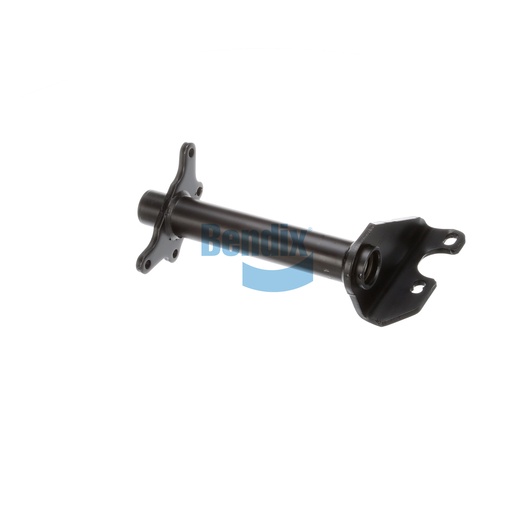

Optimize your truck's braking performance with the Bendix Bracket Assembly, designed specifically for foundation drum brakes. This assembly features a full arm style with single gusset construction, providing the durability and strength needed for heavy-duty applications. The nylon bushings used for both inboard and outboard positions ensure smooth pivoting and reduce wear over time, enhancing the overall efficiency of your braking system. With a camshaft bracket angle of 56° clockwise, it is designed for precise fitment, allowing for easy installation and maintenance. This bracket assembly is built to withstand the demands of commercial trucking, ensuring reliable performance on the road. For genuine Bendix OEM parts that enhance your vehicle's safety and functionality, Source One Parts Center is the ideal destination for all your needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
16.94
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
15.24 lb
