$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

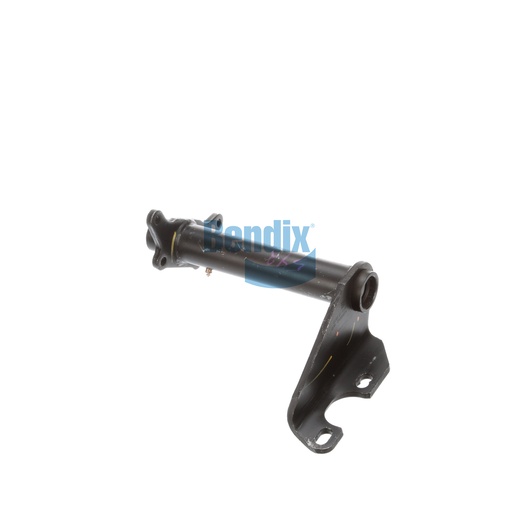

The Bracket Assembly is a vital component in the foundation drum brake system, designed to offer robust support and stability. With a net weight of 6.9 kg, this assembly features full arm styling and durable nylon bushings, ensuring it can withstand the harsh conditions of commercial vehicle operation. Its precise camshaft bracket angle of 56° CW allows for optimal brake performance, contributing to effective braking and enhanced safety on the road. This bracket is engineered for longevity, making it an ideal choice for fleet maintenance to prevent premature wear and tear on brake systems. By choosing high-quality components like this Bracket Assembly, you can ensure that your vehicle operates efficiently and safely in all situations. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing reliable solutions for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
16.94
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
15.22 lb
