K070409
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

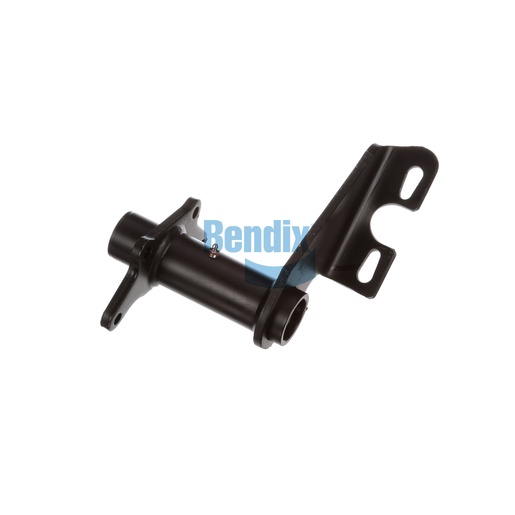

The Bracket Assembly is a critical element in your truck's braking system, specifically engineered to provide robust support to the camshaft and air chamber. With an innovative design that includes a scalloped arm style, this assembly ensures stability and reliability during operation, which is essential for maintaining safe braking performance. The assembly features a length that fits perfectly within the braking system, allowing for seamless integration and efficient function. Its durable construction minimizes wear and contributes to the longevity of the braking components. For those in need of reliable truck parts, Source One Parts Center is the premier source for genuine Bendix OEM components, ensuring your vehicle operates safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
323° CW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
11.3 lb
