K070406

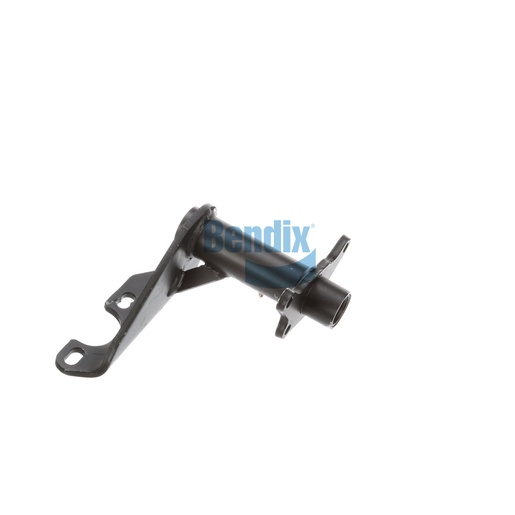

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential part of the Bendix foundation drum brake system, providing reliable support and alignment for your vehicle's braking components. Crafted with precision, this assembly features durable nylon bushings that enhance its longevity and performance under extreme conditions. Weighing 5.9 kg, it is designed to withstand the rigors of heavy-duty truck operations. The well-engineered design of the bracket ensures that all associated components function together smoothly, which is crucial for maintaining effective braking performance. This bracket assembly is perfect for those looking to enhance their vehicle's brake system's reliability and efficiency. When you choose to purchase from Source One Parts Center, you are guaranteed authentic Bendix OEM parts, ensuring optimal compatibility and performance for your commercial truck.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
77° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.02 lb
