$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

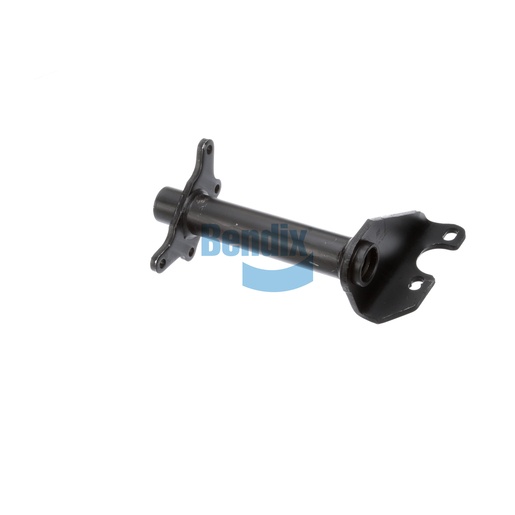

The Bracket Assembly is a vital part of the drum brake system, ensuring your truck's braking mechanism operates effectively and reliably. Designed with a full arm style and constructed from high-quality materials, this bracket assembly provides essential support to the camshaft and air chamber, enhancing overall braking performance. With precise dimensions and a camshaft bracket angle of 56° CW, it ensures a perfect fit and optimal functionality. This assembly not only contributes to the vehicle's safety by ensuring responsive braking but also minimizes wear and tear on other components, helping to extend the lifespan of your braking system. For truck operators seeking dependable parts, Source One Parts Center is the premier destination for genuine Bendix OEM parts that guarantee top-notch performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.53
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.59 lb
